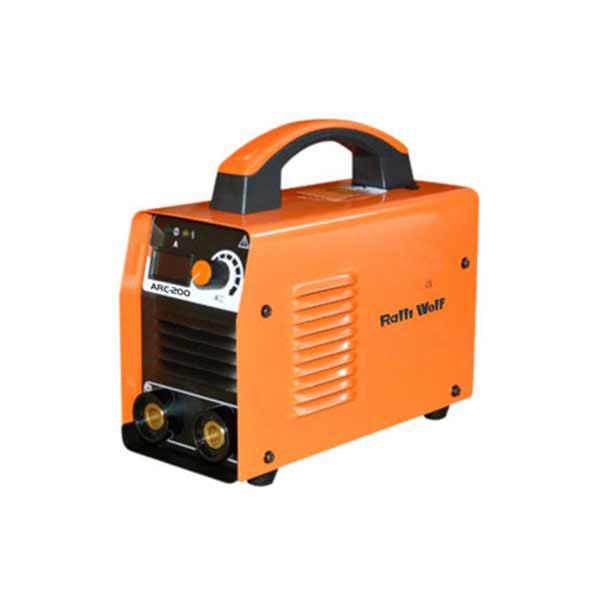

Ralli Wolf ARC 200 (WA20) Inverter Welding Machine
Brand | Ralli Wolf |
|---|---|
Model | ARC200 (WA20) |
Input Supply | 230V+15%, 1 Ph, 50Hz |
Rated Input Current (A) | 34 |
Rated Input Power Capacity (KVA) | 7.9 |
Output Current Range (A) | 20-160 |
No Load Voltage (V) | 63 |
Rated Duty Cycle (%) | 60 |
Efficiency (%) | 85 |
Power Factor | 0.7 |
Protection Class | IP21S |
Insulation Class | F |
Dimensions (mm) | 282 X 113 X200 |
Weight (Kg) | 4.1 Kg |
Invertor Technology | IGBT |
SMD Technology To Enhance The Products Reliability & More Accuracy.
User - Friendly, Cost Effective.
Compact , Portable & Light Weight.
Integrated 1-PCB Structure, Easy For Testing & Maintainance With Compact , Portable & Light Weight.
Sutaible For 6013 / 7018 etc. Electrode Welding.
Built - In Hot Start.
Built - In Arc Force.
O. C. & O. H. Protection.
Digital Meter.
STANDARD ACCESSORIES :
300A Earth Clamp + 16mm 2 X 1m Cable (CCA) + Quick Plug.
200A Electrode Holder + 16mm 2 X 3m Cable (CCA) + Quick Plug.
