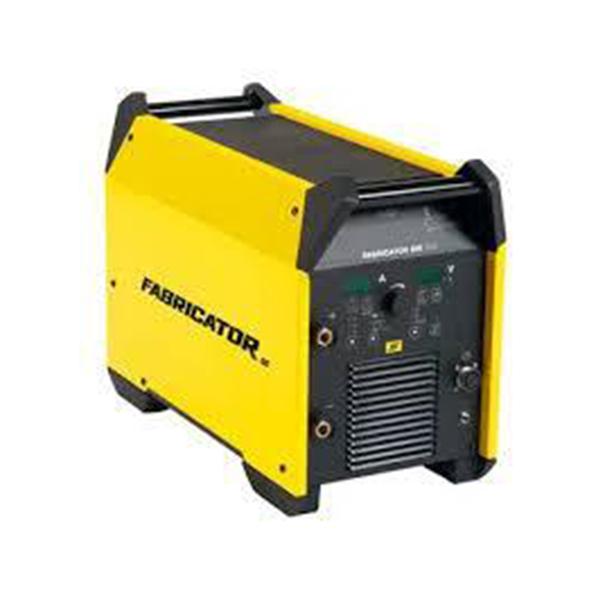

Esab Fabricator EM 500i 500A Mig/Arc Welding Machine
| Brand | ESAB |
| Model | Fabricator EM 500i |
| Input Voltage | 380-440 V , 3 Φ, 50/60 Hz |
| GMAW/SMAW Welding Output | 500 A @ 60 % Duty Cycle 390 A @ 100 % Duty Cycle |
| Wire Feeder Specifications | 2.2-20.0 m/min |
| Wire Diameter Stainless Steel Cored Wire Mild Steel | 1.0-1.6 mm 1.0-1.6 mm 1.0-1.6 mm |
| Max Spool Diameter | 300 mm |
| Power Factor at Maximum Current | 0.93 |
| Efficiency at Maximum Current | 87 % |
| Setting Range MIG/MAG | 15.5-39 VDC (30-500 A) |
| Setting Range MMA/DC | 21.2-40 VDC (30-500 A) |
| Energy Save Mode | 35 W |
| Operating Temp | -10 to +40 °C |
| MCableX | 4 x 6 |
| Enclosure Class | IP23S |
| Insulation Class | H |
| Application Classification | S |
| Certification Mark | CSA |
| Dimensions, L x W x H | 712 x 325 x 470 mm |
| Weight | 62 kg |
Fabricator EM 500i is a heavy duty inverter controlled power sources for MIG/MAG and MMA (Stick) welding. Built to withstand rugged use which makes it a perfect solution for industrial usage. Ideal for heavy industries using solid and flux-cored wires together with Fabricator Feedwire-feeder.
