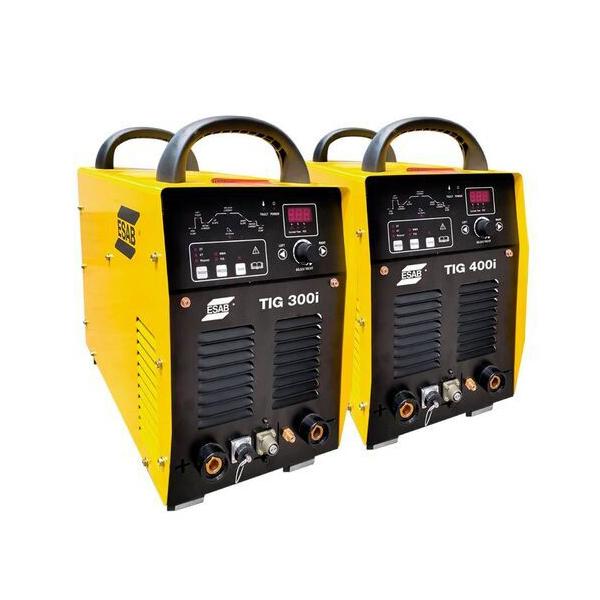

Esab Aristo Tig 400i 400A Tig Welding Machine

Brand	ESAB
Model	Aristo Tig 400i
Input Voltage	415 V ±10 %, 3 Φ, 50 Hz
GMAW Welding Output	240 A @ 100 % Duty Cycle 305 A @ 60 % Duty Cycle
GTAW Welding Output	310 A @ 100 % Duty Cycle 400 A @ 60 % Duty Cycle
Current Range GMAW GTAW	10-450 A 10-400 A
Open Circuit Voltage	76 V
Power Factor at Maximum Current	0.9
Efficiency at Maximum Current	85 %
Operating Temp	-10 to +40 °C
Rated kVA	17 kVA
Enclosure Class	IP21S
Insulation Class	H
Standards	IEC 60974-1
Dimensions, L x W x H	510 x 275 x 420 mm
Weight	35 kg

Compact and Heavy DutyTIG 400i is IGBT based inverter-controlled power sources with HF start for TIG welding. Their good welding performance in both TIG & MMA offers flexibility for a wide range of applications. TIG controls like gas Pre-flow & Post-flow, Start Current & End Current, Up & Down Slope helps deliver superior welding quality.
