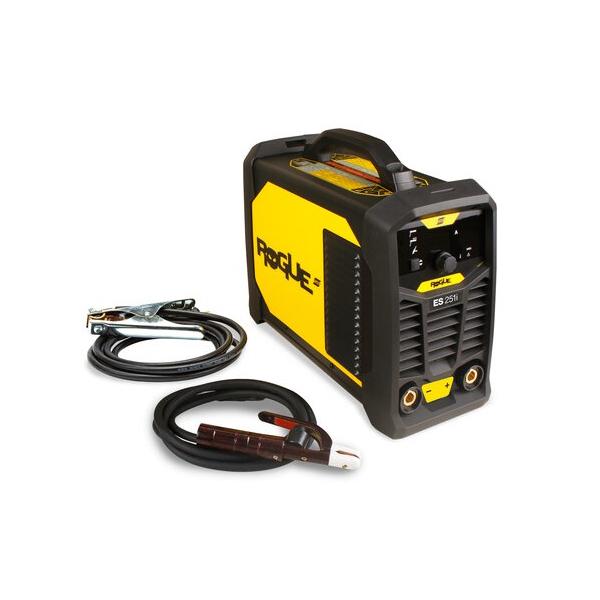

Esab Rogue ES251i 250A Arc/Tig Welding Machine
| Brand | ESAB |
| Model | Rogue ES251i |
| Input Voltage | 230 V +/-15 %, 1 Φ, 50/60 Hz |
| GTAW (TIG) Welding Output | 250 A @ 60 % Duty Cycle 194 A @ 100 % Duty Cycle |
| SMAW/MMA (Stick) Welding Output | 250 A @ 60 % Duty Cycle 194 A @ 100 % Duty Cycle |
| Setting Range GTAW (TIG) SMAW/MMA (Stick) | 30-250 A (11.2 -20 V) 30-250 A (21.2 -30 V) |
| Open Circuit Voltage | (VRD 23 V) 80.7 V |
| Power Factor at Maximum Current | 0.73 |
| Efficiency at Maximum Current | 85.8 % |
| Operating Temp | -10 - +40 °C |
| Rated kVA | 11.04 kVA |
| Enclosure Class | IP21S |
| Insulation Class | H |
| Standards | IEC60974-1 |
| Dimensions, L x W x H | 428 x 205 x 357 mm |
| Weight | 12.2 kg |
Rogue ES 251i is an IGBT based inverter-controlled power source for MMA (Stick) and Live Tig welding. Its durable fiberglass-molded casing is designed to endure impact after impact, in the shop or in the field. The compact design allows for easy portability and continuous welding with all types of electrodes, including Cellulosic.
